OAuth 1.0 Authentication

OAuth 1.0 authentication is one of the two OAuth methods and is supported only for published components. It is configured by setting the type key to oauth10:

{
    "api": {
        ...,
        "authentication": {
            "type": "oauth10"
        }
    },
    "config": {
        ...
    }
}

No other configuration parameters are necessary (nor available). The OAuth authentication process is described by the following diagram:

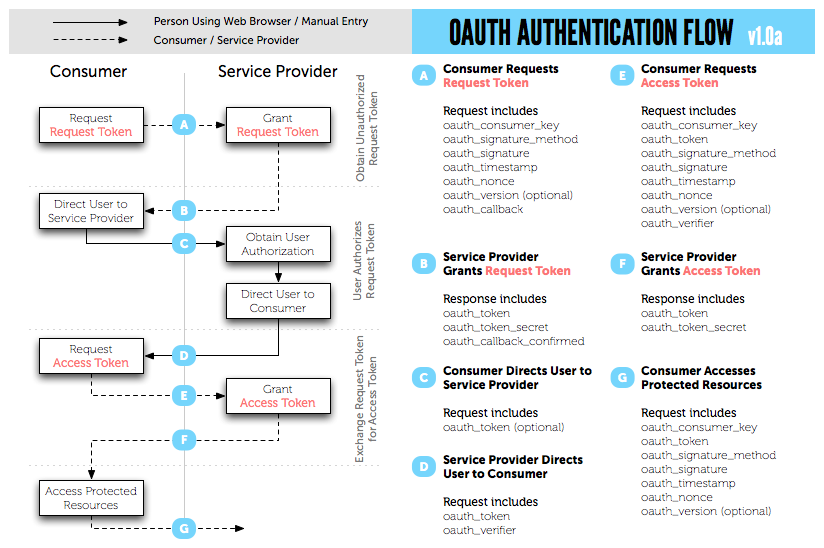

OAuth 1.0 Diagram

In the diagram, only the step G represents the actual communication with the API (extraction of data). The final authorization section of the Generic Extractor configuration is generated between steps F and G. When a component is published, the steps A - F of the process are handled by Keboola (and the end-user).

To develop and test a new component with the OAuth authorization, go through the steps A - F manually. At the last step, you obtain a response containing the fields oauth_token and oauth_token_secret, e.g.:

{
    "oauth\_token": "JohnDoe1234",
    "oauth\_token\_secret": "TopSecret5678"
}

Then, inject the OAuth credentials into the configuration root:

{
    "parameters": {
        "api": {
            ...
        },
        "config": {
            ...
        }
    },
    "authorization": {
        "oauth_api": {
            "credentials": {
                "#data": "{\"oauth\_token\":\"JohnDoe1234\",\"oauth\_token\_secret\":\"TopSecret5678\"}",
                "appKey": 1234,
                "#appSecret": "TopSecret"
            }
        }
    }
}

The authorization field has a single property oauth_api, which has a single property credentials with three child properties:

#data --- contains the response from the service provider, the response is a JSON string (not an object!).
appKey --- contains the Consumer Key.
#appSecret --- contains the Consumer Secret (use an empty string if not used by the service provider).

With the above configuration, Generic Extractor generates the Authorization header; the signature method used is HMAC-SHA1. For example:

Authorization: OAuth oauth_consumer_key="1234", oauth_nonce="72469d96572dabb4d0ea02b057ea4f246d722b72", oauth_signature="zl0y5CyySCPj8IqODV3Egjqgg6Q%3D", oauth_signature_method="HMAC-SHA1", oauth_timestamp="1492904452", oauth_token="JohnDoe1234", oauth_version="1.0"

The full configuration is, e.g.:

{
    "parameters": {
        "api": {
            "baseUrl": "http://example.com/",
            "authentication": {
                "type": "oauth10"
            }
        },
        "config": {
            "debug": true,
            "outputBucket": "mock-server",
            "jobs": [
                {
                    "endpoint": "users",
                    "dataType": "users"
                }
            ]
        }
    },
    "authorization": {
        "oauth_api": {
            "credentials": {
                "#data": "{\"oauth_token\":\"userToken\",\"oauth_token_secret\":\"tokenSecret\"}",
                "appKey": 1234,
                "#appSecret": "TopSecret"
            }
        }
    }
}

See example [EX102] or learn more about Keboola-OAuth integration.
